IEEE 802.15.6 WBAN Tutorial : WBAN Frequency Range, frame, PHY, MAC, Security layers

Wireless Body Area Networks (WBANs) based on the IEEE 802.15.6 standard are specialized wireless communication systems designed for short-range, low-power data exchange between wearable devices or sensors placed on or inside the human body. This tutorial offers a detailed exploration of WBANs, including WBAN frequency range, frame structure and modulation coding rates. Additionally, we will delve into the physical, Medium Access Control (MAC) and security layers of WBANs to provide a comprehensive understanding of how these networks operate, their performance capabilities and their applications in healthcare, fitness and other wearable technologies.

The IEEE 802.15.6 standard was implemented to develop communications model for low power devices which will be implanted on or inside human body for various applications such as medical,consumer electronics,entertainment etc. The network made by IEEE 802.15.6 compliant devices is known as WBAN(Wireless Body Area Network).

The standard defines PHY and MAC layers. There are three different physical layers supported viz. Narrow Band, HBC (Human Body Communication) and UWB (Ultra Wide Band). PHY layer takes care of modulation and error correction functionalities to construct the reliable link between WBAN transmitter and receiver devices. PHY converts the data to be transmitted compatible with the air interface as per various frequency requirements. MAC layer controls the access to the channel among multiple WBAN devices.

This standard based solution is used for eHealth or remote healthcare applications widely. To provide the higher level of security over air interface, the standard defines 3 levels of security viz.
level 0 -unsecured communication
level 0 -authentication only
level 0 -Both authentication and encryption
The table-1 mentions features supported by WBAN.

WBAN Features

IEEE 802.15.6 WBAN Frequency Range

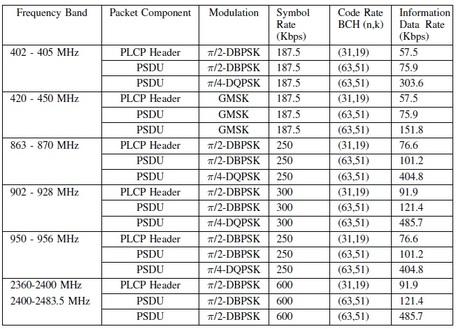

Following table mentions IEEE 802.15.6 frequency bands or WBAN frequency bands.

WBAN Modulation code rates

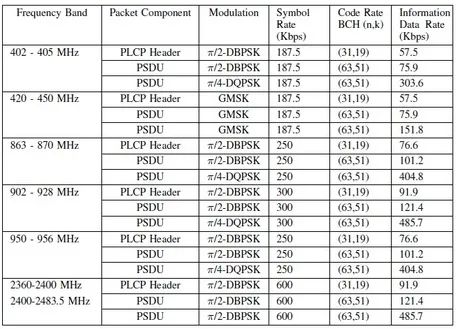

Following table mentions modulation-code rates for various frequency bands in WBAN standard.

WBAN Frame Structure

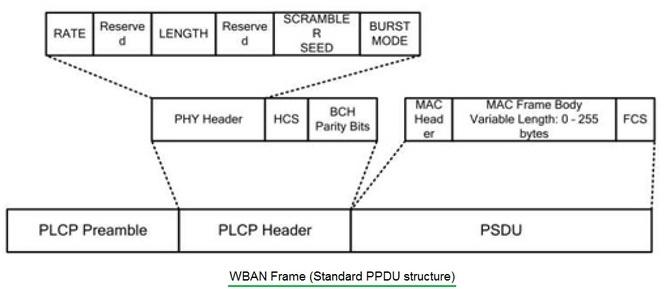

Like other frame structures of the various standards WBAN frame is composed of three components viz. PLCP preamble, PLCP header and PSDU. Preamble is used for time and frequency offset synchronization at the receiver. Header is used to convey information about physical layer modulation code rate and other useful system critical MAC parameters. PSDU part contains the MAC layer data to be transmitted. Figure-2 depicts WBAN frame structure mentioning complete PPDU structure.

WBAN Protocol stack layers

The WBAN (Wireless Body Area Network) protocol stack, as defined by the IEEE 802.15.6 standard, consists of several layers, each with distinct functions to enable reliable and secure communication between on-body or implanted devices. Stack consists of physical layer, MAC layer, security layer and convergence layer. Above the MAC layer, the Convergence Layer adapts higher-layer protocols and applications to the WBAN’s specific requirements, handling tasks like addressing, segmentation, and quality of service (QoS) management. Together, these layers form an integrated stack that supports efficient, secure, and reliable communication for applications such as remote health monitoring, medical implants, and wearable technology.

WBAN Physical layer

The physical layer of WBAN (IEEE 802.15.6) is responsible for data transmission and reception over a short range using various frequency bands like the Medical Implant Communication Service (MICS) band, 2.4 GHz ISM band, and Ultra-Wideband (UWB) spectrum. It supports different modulation schemes such as Narrowband (NB) and UWB, with various coding rates to ensure reliable communication under varying channel conditions. The physical layer is designed to minimize energy consumption, reduce interference, and optimize the link budget for efficient signal transmission, which is crucial for wearable and implantable devices operating on limited power sources.
➨Refer WBAN PHY Layer >>.

WBAN MAC layer

The Medium Access Control (MAC) layer of WBAN is responsible for managing channel access, coordinating communication between nodes, and ensuring efficient use of the wireless medium. It supports different access modes, such as random access, scheduled access, and improvised access, allowing nodes to transmit data in a flexible and efficient manner. The MAC layer handles packet framing, data integrity checks, and quality of service (QoS) provisioning, enabling seamless communication for latency-sensitive and critical health-monitoring applications. It also optimizes energy usage by managing sleep and wake cycles, which is crucial for maximizing the lifespan of battery-operated WBAN devices.
➨Refer WBAN MAC Layer >>.

WBAN Security layer

The security layer in WBAN is designed to safeguard the integrity, confidentiality, and authenticity of data exchanged between devices, which is critical for protecting sensitive health information. It employs advanced encryption techniques, key management protocols, and authentication mechanisms to prevent unauthorized access and eavesdropping. The security layer also addresses challenges like low processing power and limited energy resources by using lightweight cryptographic methods that minimize computational overhead while ensuring robust protection. Additionally, it provides mechanisms to detect and mitigate attacks, such as replay attacks and node impersonation, ensuring the reliability and security of the WBAN network.
➨Refer WBAN Security Layer >>.

Conclusion

WBAN networks are increasingly used for monitoring health metrics, supporting medical treatments, and enabling various wearable technologies. With advancements in technology and a growing focus on patient care, WBANs are set to play a crucial role in the future of healthcare and personal monitoring systems. This tutorial has covered the fundamental concepts and technical details that serve as the building blocks for designing, implementing, and optimizing WBAN systems.
