LoRa Tutorial : Frame Structure, LoRaWAN Architecture and Protocol Stack Layers

This comprehensive LoRa tutorial delves into the various aspects of LoRa technology, including its frame structure, network architecture and protocol stack layers. It provides an in-depth understanding of how LoRa networks are constructed and how data flows between devices. By exploring each component, readers will gain valuable insights into the mechanics of LoRa communication and its applications in the IoT ecosystem.

LoRa technology is used as wide area network wireless technology. There are different frequency bands defined in US (902 to 928 MHz), EU (863 to 870 MHz) , China (779 to 787 MHz) and other regions to be used in LoRa wireless technology based network. It is low power, long range and low data rate based technology developed with initiative by Samtech.

LoRaWAN architecture

The network architecture of LoRaWAN consists of gateways, network servers and end devices. The network topology is star of stars. End devices are also known as motes and gateways are known as base stations or concentrators in LoRa network system.

End devices and Gateways are connected wirelessly using ISM bands specified with single hop. Gateways and network servers are connected using IP backhaul connections.

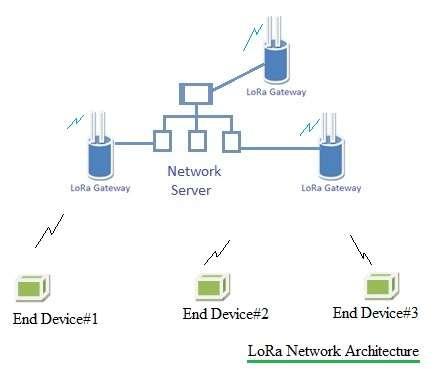

LoRa network architecture

The figure-1 depicts LoRa network architecture. Customer information database is housed in servers. Communication between end devices and gateways are carried at different channels and different data rates. LoRa supports adaptive data rate from 0.3 Kbps to 50 Kbps. Refer LoRaWAN architecture and network elements >>.

LoRa Frame Structure

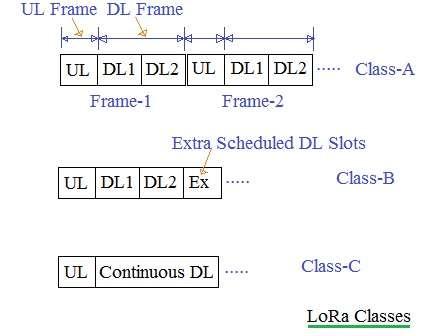

LoRa Classes-A,B,C

The transmission from end device to gateway is referred as "uplink" and transmission from gateway to end device is referred as "downlink". There are different classes supported in LoRaWAN network viz Class A, Class B and Class C.

As shown in figure LoRa frame consists of uplink part and downlink part. In Class-A, LoRa frame has one uplink slot followed by two downlink slots. The frame is as per TDD topology. Refer LoRaWAN classes for other LoRa classes.

LoRaWAN Protocol Stack

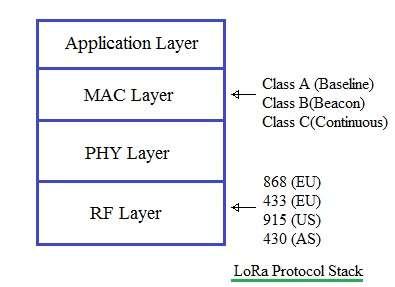

LoRa protocol stack

The figure-2 depicts LoRaWAN protocol stack consisting of Application layer, MAC layer, PHY layer and RF layer.
• Data from application layer and MAC commands required to establish connection between End device and gateway are carried as MAC payload.
• MAC layer constructs the MAC frame using MAC payload.
• PHY layer uses MAC frame as PHY payload and constructs the PHY frame after inserting Preamble, PHY header, PHY header CRC and entire frame CRC.
• RF layer modulates the PHY frame on required ISM RF carrier as per regulatory requirement and transmits on to the air.

Note: Information provided on this page is derived from LoRaWAN Specification V1.0 released on Jan.2015 by LoRa™ Alliance. LoRa alliance is responsible for changes to the specifications at any time without notice. RF Wireless World is not responsible for any issues with regard to the same. Refer latest specifications published by LoRa Alliance ( https://www.lora-alliance.org ) for any changes required to be done for the products under development as per LoRa standard.

Conclusion

This tutorial serves as a complete guide to understanding LoRa technology, covering everything from basic concepts to advanced topics. With knowledge of the frame structure, LoRaWAN architecture, and protocol stack layers, users can confidently design and implement LoRa-based networks. Whether for academic study or practical deployment, this guide provides a solid foundation for mastering LoRa technology and its applications in IoT solutions.
➨Refer LoRa Physical layer, LoRa protocol stack and LoRaWAN MAC layer for more information.
