This page covers PSK modulation python code. PSK python script plots PSK modulated waveform and binary data waveform as output.
Introduction: PSK stands for Phase Shift Keying. This is one of the digital modulation scheme in which binary data are represented by phase of carrier frequency. Usually 180 degree of phase shift is applied between binary 1 and binary 0. In following PSK python script, phase shift of pi radian (i.e. 90 degree) is being used.
PSK modulation output can be represented by following equation :
sig (t) = sin(2*pi*fc*t + phase), phase is 3*pi/2 for binary '1'
sig (t) = sin(2*pi*fc*t + phase), phase is pi for binary '0'
Binary data generator Python script | Binarygen.py
Following python script can be used to generate random binary data. This is used as baseband data in ASK modulation.
import numpy as np
rand_n = np.random.rand(sym)
rand_n[np.where(rand_n >= 0.5)] = 1
rand_n[np.where(rand_n <= 0.5)] = 0
sig = np.zeros(int(sym*sym_len))
# generating symbols
id1 = np.where(rand_n == 1)
for i in id1[0]:
temp = int(i*sym_len)
sig[temp:temp+sym_len] = 1
return sig
PSK Python script
Following PSK python script can be used to generate PSK modulated waveform for random binary data given as input.
# Library files
import matplotlib.pyplot as plt
import numpy as np
from Binarygen import binary
from math import pi
plt.close('all')
# Carrier wave and binary signal configuration parameters
Fs = 1000 # Samples per second
fc = 50 # Carrier frequency 50 Hz, 50 cycles/sec
T = 1 # Total simulation time in seconds
t = np.arange(0, T, 1/Fs)
Td = 0.1 # Bit duration
Nsamples = int(Td*Fs) # Samples in one bit duration
Nsym = int(np.floor(np.size(t)/Nsamples))
# Binary waveform generation
sig = binary(Nsym,Nsamples)
# PSK waveform generation
phase= pi + pi*sig/2
Xpsk = np.sin(2*pi*fc*t + phase)
# Binary waveform and PSK modulation waveform Plots
figure, axis = plt.subplots(2)
axis[0].plot(t, sig)
axis[0].set_title("Binary digital data")
axis[1].plot(t, Xpsk, 'r')
axis[1].set_title("PSK modulated signal")
plt.tight_layout()
plt.show()
Output plots of PSK modulation python code

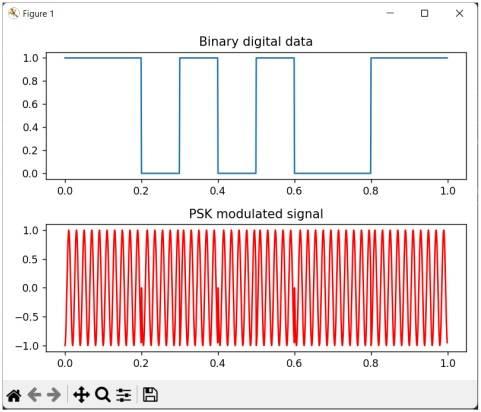

Following are the output plots (Binary input data and PSK modulated waveform) of above PSK modulation python script.
