Ping protocol basics with Ping request and Ping Response

This page covers ping protocol(ICMP) basics and provide example with various fields carried in a typical Ping Request and Ping Response message.

Ping protocol is basically ICMP family of protocols. It is mainly used to check connectivity from one IP enabled system with the another IP enabled system. One can do the ping from one source PC to the other destination PC and can determine whether the destination PC is reachable or not. The medium between the PC can be cable or wireless. It can be checked for various networks such as LAN,WAN,WLAN,WiMAX,GSM,CDMA,LTE, etc.

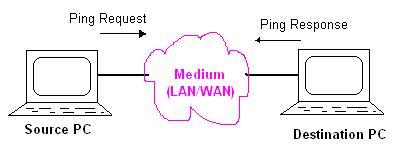

ping request and ping response

As shown in figure,Ping protocol comprises of Ping request and Ping Response. Ping Request is sent from Source PC to destination PC. In a reply to ping request, ping response is sent back from destination PC to the source PC. Following table mentions example of a typical ping request and ping response protocol with various fields. It is clear from the table that in ideal scenario when there is no problem, all the bytes received in data portion of the ping request is copied and sent back in ping response by destination PC. The protocol described here is as per IPV4 .

Byte position Description Ping Request(Received),Hex Ping Response(Transmitted),Hex
1
2
3
4
5
6
Destination MAC address 00
A0
C9
E7
31
45
00
A0
C9
22
89
56
7
8
9
10
11
12
Source MAC address 00
A0
C9
22
89
56
00
A0
C9
E7
31
45
13
14
Type 08
00
08
00
15 Version 45 45
16 Type of service 00 00
17
18
Length of packet including IP header 00
3C
00
3C
19
20
Unique ID 4F
00
4F
00
21
22
Offset 00
00
00
00
23 TTL 20 20
24 Protocol 01 01
25
26
Checksum of IP header EF
16
EF
16
27
28
29
30
IP source address AC
12
02
47
AC
12
02
3F
31
32
33
34
IP Dest.address AC
12
02
3F
AC
12
02
47
35
36
Type:Request Code 08
00
00
00
37
38
ICMP checksum 3E
5C
46
5C
39
40
ID 01
00
01
00
41
42
Sequence Number 0E
00
0E
00
43 to 74 32 bytes of data for pinging constant 32 hex bytes constant 32 hex bytes(same as col.3)
